Side Door Access Gyratory Screens：
1. 1. Compare with the traditional gyratory screen structure, the opening way of Side Door Access Gyratory Screens mesh is changed from the top of the screener into both sides of the screen equipment.
2. The form of the MHG gyratory screen deck is also changed from tradional one layer-one screen mesh into each layer of screens deck is composed of many independent small screens plate, each weight and area of the small screens plate is half and 1/8 of the orginal whole screener plate .
3. When the MHG gyratory screens mesh of the bottom needs to be changed, it is no necessary that remove the top screen deck and cover than before, which improves the working efficiency than traditional gyratory screens.
4. For the MHG gyratory screen, it is no necessary to change the whole layer screen mesh when one little screens deck broken. Just change sigle small screener plate, which improves the working efficiency than traditional gyratory screens.
5. For traditional gyratory screens, the exchange process of screen mesh very complicated, which waste the production time and lower the working effieiency. Side door access gyratory screens mesh changed very quickly, the time just take less 10 mins.
Side door access gyratory screens features: ：

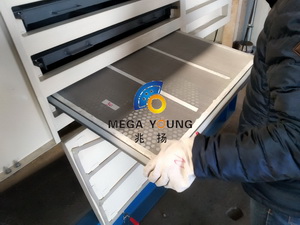

1. 1. MHG gyratory Screens mesh changing work is very safe. Each layer screen deck is consist of 2-8 single small plate, each screen plate weight is within 20kgs, it is very safe for operating.
2. The weight and area of each little screen deck panel is 1/2 and 1/8 of one whole layer screen plate, which no longer use hoisting equipment, changed much more easier than traditional gyratory screens.
3. Single samll screen plate is 1/2 width of original whole gyratory screen deck, which save the equipment installation space.
4. Comparing with other precision screening equipment, the capacity of side door access gyratory screen is much bigger.
5. Installation and operation both are conveniently.
6. The advantages of small area, light weight, can be access from the side door, single screen layers and decks, can meet the request on time and space for stick material, abrasive material, and other application enviorments need to be changed screen frequently.

• Production
• Principle
• Application industry
• Video
• Brochure download

　　
MHG series gyratory screens  is similar with M serial gyratory screen such as the screening principle, screening efficiency and application, just except the screen deck structure.

In some customer application technical process, the customer need always renew the screens mesh, if  the renew time for screening mesh is too long, or it is very difficult for replacing the screen mesh,  it will take too much time for stopping the equipment work if replacing mesh for several times, so it will affect the production output at last, the MHG series gyratory screens is for solving above problem, and the MHG gyratory screen has following features:

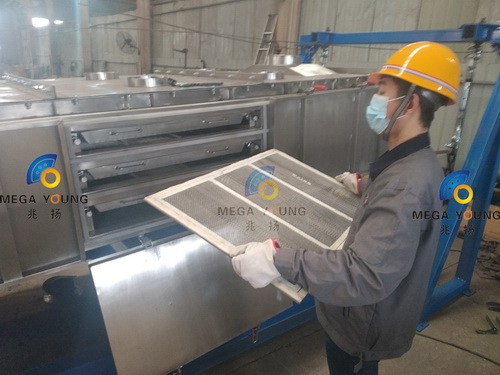

1.The operation of replacing gyratory screens mesh convenient, one worker could finish the mesh replacing work within 10 mins for one complete equipment, which save the equipment stop time and save the labor energy cost, it increase the screening capacity at last.


2.One layer screens deck consist several little piece screen deck, if some section is worn out, we just need renew the broken little piece screen mesh but not the complete layer screen mesh, so it save the mesh cost.


3.The area of each little piece screen mesh is 1/8 –1/2 of complete layer screens deck, so it do not take much room when renewing the screen mesh.



4.It do not injure previous screens mesh when replace it, so we could recycle it.





　　

　　

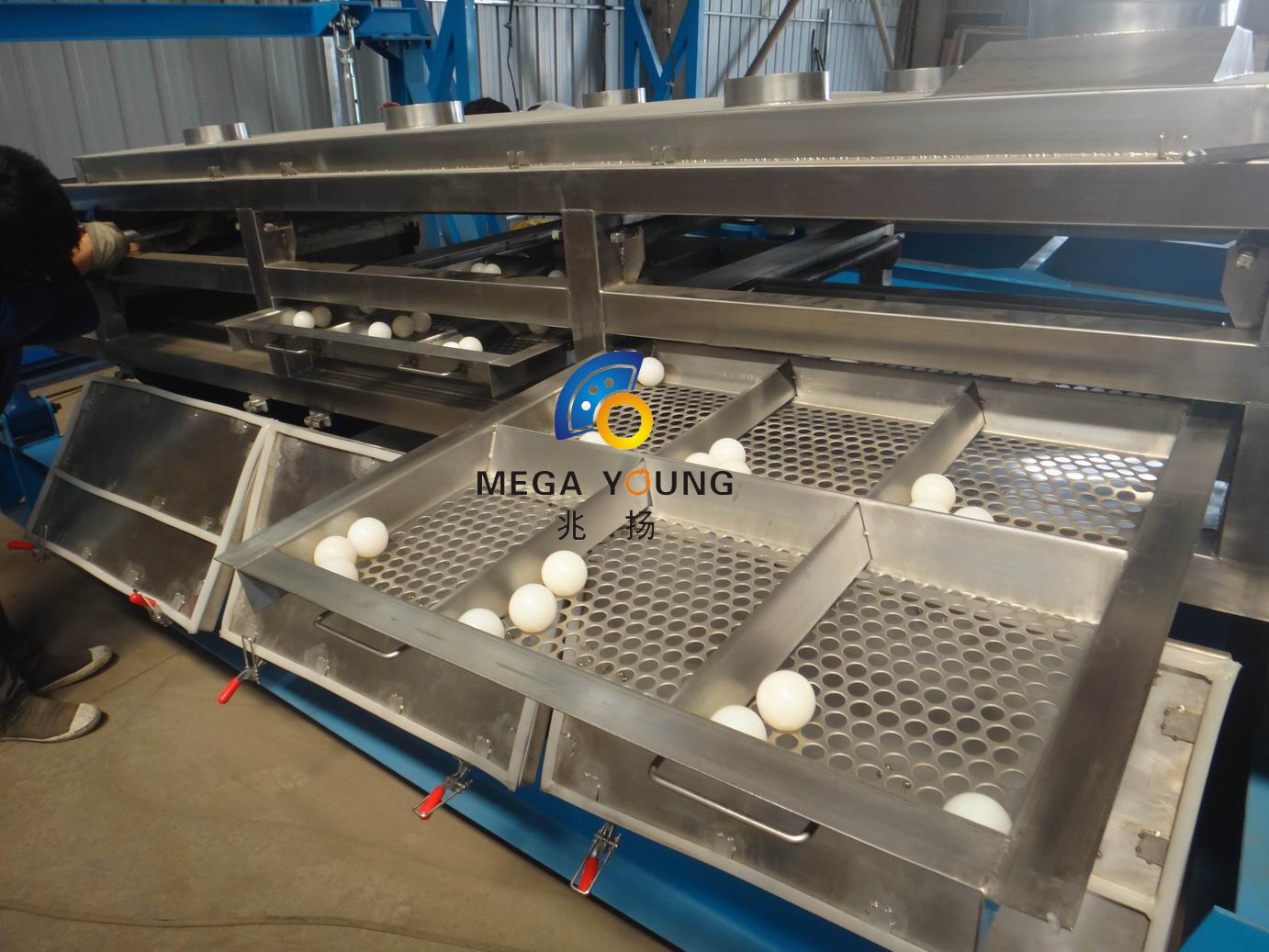

The gyratory screens  deck consist of screesn mesh, self-cleaning ball and support screen deck, The self-cleaning ball will impact the screen mesh for keeping from screen mesh aperture block, so the working principle of screen deck is same with the M series gyratory vibrating screens.

The difference between the M series gyratory vibrating screens  and MHG series gyratory screens  include following: One layer complete screen deck include several little independent screen deck, and each little screen deck has its own independent mesh fasten device, and replace the screen deck from two side of the screener box, For M series gyratory screens, we replace the screen deck from the top of the screen box.

1.The screen deck assembly: The screen mesh and the support screen deck is apart, we press them together via the fasten device under the support screen deck, when loosen the fasten device, we could take out the screen mesh easily, then put into the new screen deck and fasten it again, the mesh replacing work is finished now.

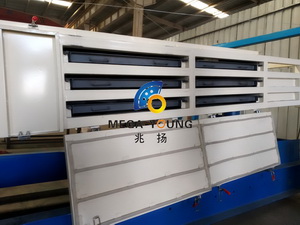

2.Side gate : the gate for replacing the mesh locate on the two side of the screener box, when renewing the screen deck, we just need loosen the fasten device and take out the old screen mesh then put into one new screen mesh, close the screen side gate at last, we do not need release the top cover and other flexible connection, so we could avoid the extra work.

MHG type gyratory screens sifter is mainly for screening some kind material with strong abrasiveness, or the screener mesh aperture is very little, need always replace the screen mesh, for example the garnet powder, limestone powder, metal powder and some high density particle material and powder material.

MHG series gyratory vibrating screens  is much better for  some industry application process, the customer need change the working screen mesh regularly base on request production size or color, for example different color PVC pellet or different size silica sand.
